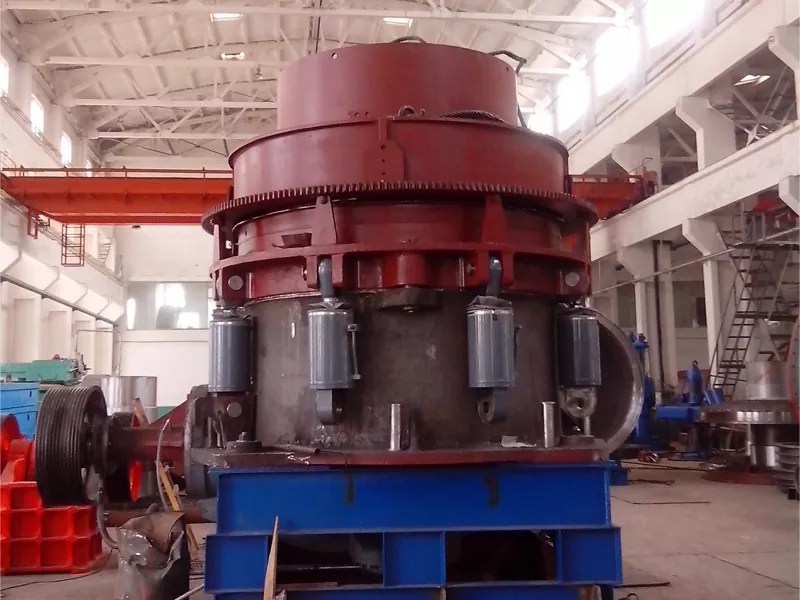

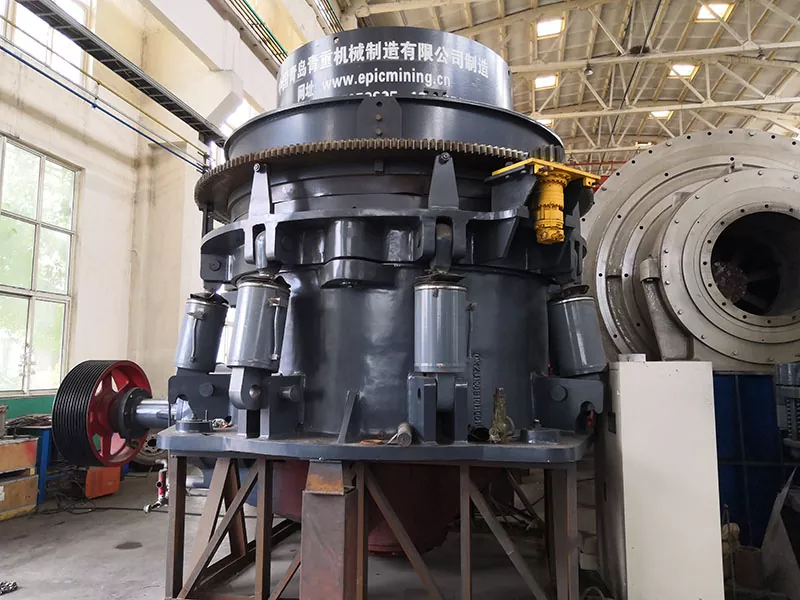

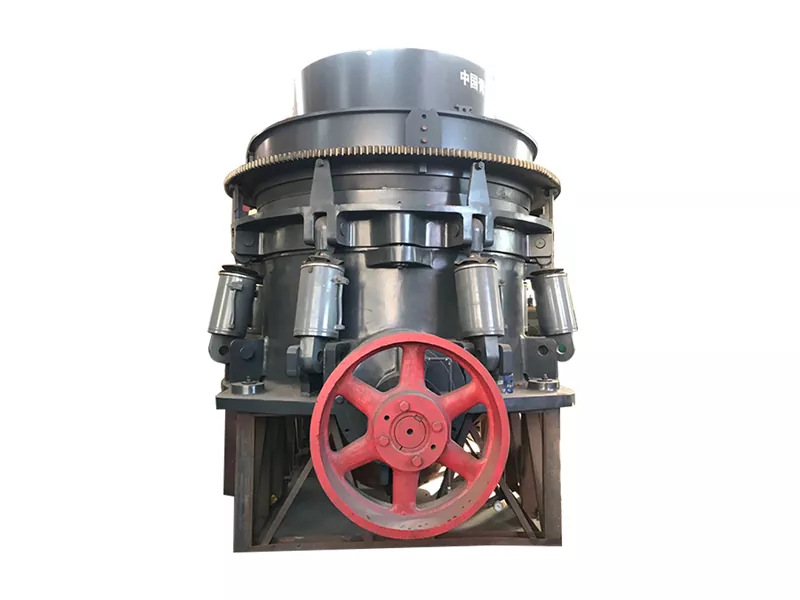

Crusher več valja hidravličnega stožca
EPIC je profesionalni več valjni hidravlični proizvajalec drobilnikov in dobavitelj na Kitajskem. Če vas izdelki zanimajo, se obrnite na nas. Sledimo kakovosti počitka, ki je bila prepričana, da je cena vesti, namenska storitev.
Pošlji povpraševanje
Opis izdelka
EPIC je več valjski hidravlični proizvajalec drobilnikov in dobavitelj na Kitajskem, za vas lahko zagotovimo profesionalno storitev in boljšo ceno. Multi-cylinder hydraulic cone crusher is a high-energy cone crusher with high performance.It combines higher speedand stroke to greatly improve the rated power and passing capacity of the crusher,and has higher crushing capacityand crushing efficiency;It has been widely used in medium crushing,fine crushing and ultra-fine crushing of variousmedium-hard rocks such as granite and basalt.It is a new Izdelek v rudarski gradbeni industriji, ki nadomešča drobilnik stožcev in splošni hidravlični stožec.
Funkcije opreme:
Velika proizvodna zmogljivost, visoka stopnja avtomatizacije, dobra velikost zrn končnih izdelkov, manj obrabe, dolgo življenjsko dobo, neprekinjeno obnavljanje in razvoj drobtine opreme, podaljšane nošene dele, dolgo življenjsko dobo, laimainterna in popravilo.
Parameter izdelka
| Model | Lomljenje premer (ft/mm) |
Votlina tip |
(palčni/mm) Velikost napajalnih vrat |
Najmanjši Izpustitev (palčni/mm) |
Električni motor | Celotna teža (Izključitev |
Izcedek velikost vtičnice (mm) |
Sposobnost (T/H) |
||
| Zaključna stran | Odpiralna stran | Model | Moč | |||||||
| HPY-B1313 | 41/4 (1295) |
Tanek | 43/8 (109) | 53/8 (137) | 1/2 (13) | JS126-6 | 155 | 26.5 | 13-31 | 125-210 |
| HPY-B1321 | Srednje | 71/2 (188) | 81/4 (210) | 5/8 (16) | 16-38 | 140-285 | ||||
| HPY-B1324 | Groba | 85/8 (216) | 95/8 (241) | 3/4 (19) | 19-51 | 180-385 | ||||
| HPY-B1325 | Dodatna coarse | 91/2 (238) | 103/8 (259) | 1 (25) | 25-51 | 250-400 | ||||
| HPY-B1620 | 51/2 (1676) |
Tanek | 71/2 (188) | 83/8 (209) | 5/8 (16) | JS136-6 | 240 | 49.6 | 16-38 | 205-365 |
| HPY-B1624 | Srednje | 81/2 (213) | 95/8 (241) | 7/8 (22) | 22-51 | 275-465 | ||||
| HPY-B1626 | Groba | 95/8 (241) | 103/4 (268) | 1 (25) | 25-64 | 320-700 | ||||
| HPY-B1636 | Dodatna coarse | 133/8 (331) | 141/2 (368) | 11/2 (38) | 38-64 | 465-755 | ||||
| HPY-BC2117 | 7 Hd Dodatno težko (2134) |
Tanek | 71/8 (253) | 111/8 (278) | 3/4 (19) | Y450-6 | 400 | 105 | 19-38 | 410-805 |
| HPY-BC2133 | Srednje | 121/8 (303) | 133/8 (334) | 1 (25) | 25-51 | 560-1100 | ||||
| HPY-BC2136 | Groba | 133/8 (334) | 143/4 (369) | 11/4 (31) | 31-64 | 860-1405 960-1500 |
||||
| HPY-BC2146 | Dodatna coarse | 163/8 (425) | 181/8 (460) | 11/2 (38) | 38-68 | |||||
| HPY-B2530 | 81/2HD (2590) |
Tanek | 107/8 (275) | 117/8 (300) | 3/4 (19) | Y5602-12 | 560 | 135 | 19-38 25-51 |
710-1250 |
| HPY-B2535 | Srednje | 125/8 (320) | 137/8 (350) | 1 (25) | 1050-1960 | |||||
| HPY-B2541 | Groba | 147/8 (375) | 161/8 (410) | 11/4 (31) | 31-64 | 1250-2560 | ||||
| HPY-B2548 | Dodatna coarse | 171/2 (445) | 187/8 (480) | 11/2 (38) | 38-64 | 1450-2600 | ||||
| HPY-D0904 | 3 (900) | Tanek | 1/2 (13) | 15/8 (41) | 1/8 (3) | Y315S-6 | 75 | 15 | 3-13 | 30-105 |
| HPы-D0906 | Groba | 15/6 (33) | 23/8 (61) | 1/8 (3) | 3-16 | 30-120 | ||||
| HPY-D0907 | Dodatna coarse | 2 (51) | 3 (76) | 1/4 (6) | 6-19 | 60-145 | ||||
| HPY-D1306 | 41/4 (1295) |
Tanek | 11/8 (29) | 21/2 (64) | 1/8 (3) | JS126-6 | 155 | 27 | 3-16 | 35-185 |
| HPY-D1308 | Srednje | 21/8 (54) | 31/2 (89) | 1/4 (6) | 6-16 | 80-185 | ||||
| HPY-D1310 | Groba | 23/4 (70) | 41/8 (105) | 3/8 (10) | 10-25 | 115-255 | ||||
| HPY-D1313 | Dodatna coarse | 37/8 (98) | 51/4 (133) | 5/8 (16) | 19-25 | 225-265 | ||||
| HPY-D1607 | 51/2 (1676) |
Tanek | 13/8 (35) | 23/4 (70) | 3/16 (5) | JS136-6 | 240 | 49.7 | 5-13 | 105-240 |
| HPY-D1608 | Srednje | 21/8 (54) | 31/2 (89) | 1/4 (6) | 6-19 | 140-315 | ||||
| HPY-D1613 | Groba | 37/8 (98) | 51/4 (133) | 3/8 (10) | 10-25 | 205-375 | ||||
| HPY-D1614 | Dodatna coarse | 45/8 (117) | 61/4 (158) | 1/2 (13) | 13-28 | 285-375 | ||||
| HPY-DC2110 | 7hd Dodatno težko (2134) |
Tanek | 2 (51) | 41/8 (105) | 3/16 (5) | Y450-6 | 400 | 105 | 5-16 | 200-455 |
| HPY-DC2113 | Srednje | 33/4 (95) | 51/4 (132) | 3/8 (10) | 10-19 | 460-560 | ||||
| HPY-DC2117 | Groba | 5 (172) | 7 (178) | 1/2 (13) | 13-22 | 490-660 | ||||
| HPY-DC2120 | Dodatna coarse | 6 (152) | 81/4 (203) | 5/8 (16) | 16-25 | 565-730 | ||||
| HPY-D2512 | 81/2HD (2590) |
Tanek | 23/8 (60) | 43/4 (120) | 3/8 (10) | Y5602-12 | 560 | 135 | 5-16 | 550-670 |
| HPY-D2515 | Srednje | 4 (100) | 6 (150) | 1/2 (13) | 10-19 | 660-820 | ||||
| HPY-D2519 | Groba | 51/8 (130) | 71/2 (190) | 5/8 (16) | 13-22 | 760-1050 | ||||
| HPY-D2522 | Dodatna coarse | 61/4 (160) | 85/8 (220) | 3/4 (19) | 16-25 | 910-1290 | ||||
